This 3D-printed dash mount is made to suit the Ford Ranger Super Duty IDMS mounting position on the passenger side. It provides a clean and secure way to mount a UHF setup, phone holder, or other compatible accessories in your cabin.

Upgrade your Ford Ranger Super Duty interior with a purpose-built dash mounting solution available through Canyon Offroad.

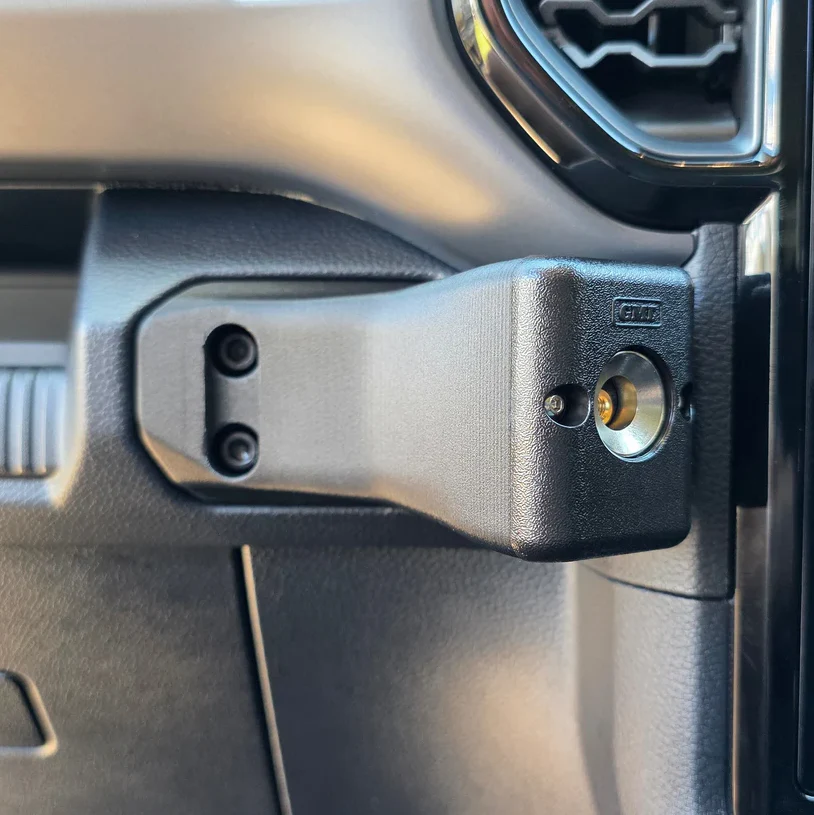

This mount installs using the factory IDMS plate on the passenger side and is designed to give you a strong, tidy platform for your preferred setup. Whether you’re running a UHF bracket, a Quad Lock-style mount, or a custom accessory arrangement, this bracket gives you a practical mounting point without a messy universal fit-out. The original product page notes compatibility with a GME magnet plate, Motorola VHF, M5-based Quad Lock or some MagSafe mounts, and custom setups via centre M5 and square-pattern M3/M4 holes.

Manufactured in Polycarbonate Carbon Fibre, it’s built for durability in demanding touring and off-road conditions. It also includes specialised M6 mounting hardware, a TX30 Torx bit for installation, and a spare bolt cover. The double-mount version includes an added Quad Lock plate, a third mounting bolt, and a 12 mm pass-through for USB-C routing.

Features

Suits Ford Ranger Super Duty
Mounts to the passenger-side IDMS plate
Available in UHF, Quad Lock, or Double Mount configurations
Compatible with GME magnet plate setup
Suits Motorola VHF

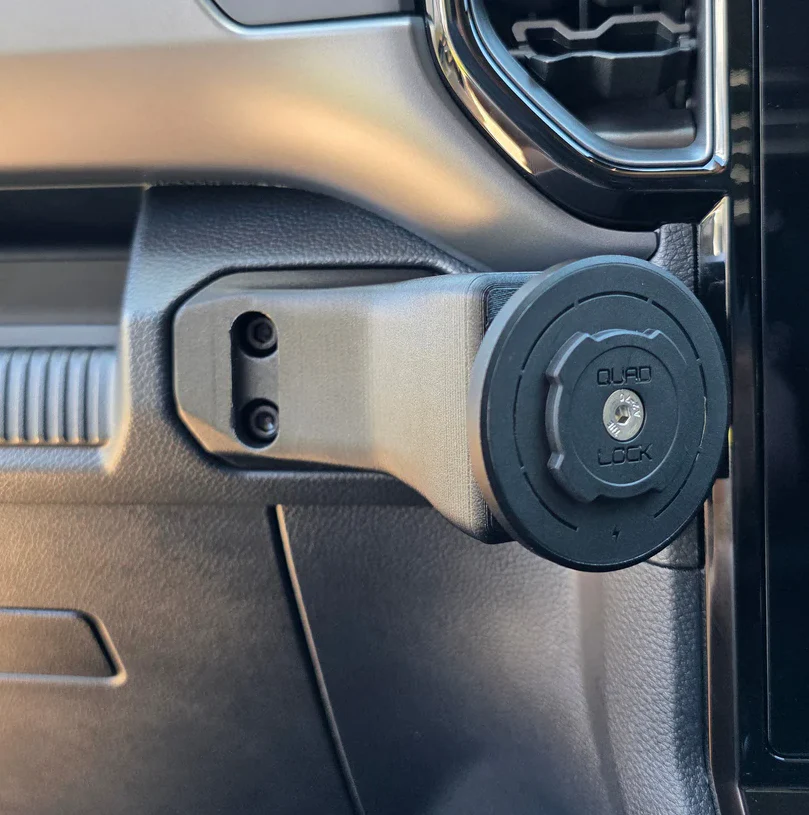

Fits M5 Quad Lock or selected MagSafe-style mounts
Allows custom mounting using centre M5 and M3/M4 square-pattern holes
6 mm pass-through for power routing
Double mount includes additional plate, third bolt, and 12 mm USB-C pass-through
Made from Polycarbonate Carbon Fibre
Includes specialised M6 hardware, TX30 Torx bit, and spare bolt cover

Important Notes

Bracket/plate accessories such as GME plate, radio, phone mount, and MagSafe/Quad Lock components are not included unless stated.
Ford’s factory bolts and plate are designed to cut thread during installation. Use lubricant and take care during install. Professional installation is recommended if you are unsure.

Lead Time / Shipping

Approximate order lead time: 2-3 Days till Dispatch

Ford Ranger Super Duty

Ford Ranger Super Duty (2025-2028) IDMS Dash Mount – UHF / Quad Lock / Universal
